Let's Dance.

Gumowski-Mira's attractor makes strange shape.

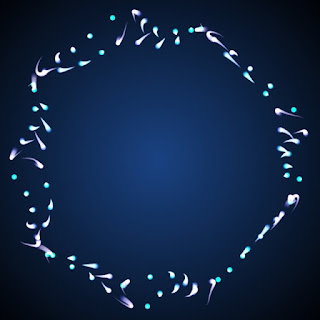

Generative art made with Gumowski-Mira's attractor.



Creative coding animation with Gumowski-Mira's attractor.

It's a creative coding animation work made with Processing.

Gumowski-Mira's attractor is so interesting.
I was playing with it and wanted to make some animation with it.
Attractor has characteristics of very high sensitivity about parameters.
So I put some CATALYST in it, and animate with catalyst, not attractor parameters.

This code does not display any images on the screen but generates image files for animation.
You can make an animation with these files.

Processing code example.

Please feel free to use this examplse code, if you like it.
To see other works based on my code is my pleasure. And my honor.


// Lets Dance.
// @author @deconbatch
// @version 0.1
// Processing 3.2.1
// 2018.12.01

void setup() {

  size(720, 720);
  colorMode(HSB, 360, 100, 100, 100);
  imageMode(CENTER);
  smooth();
  noStroke();
  noFill();
  noLoop();

}

void draw() {

  int   frameCntMax = 30 * 6;
  float baseHue     = random(360);
  GumowskiMira gm   = new GumowskiMira(baseHue);

  background(0.0, 0.0, 0.0, 100.0);
  translate(width / 2 - 285, height / 2);

  for (int frameCnt = 0; frameCnt <= frameCntMax; ++frameCnt) {

    float frameRatio = map(frameCnt, 0, frameCntMax, 0.0, 1.0);

    blendMode(BLEND);
    backdrop(baseHue);

    blendMode(SCREEN);
    gm.draw(frameRatio);

    saveFrame("frames/" + String.format("%04d", frameCnt) + ".png");

  }

  exit();

}

/**
 * GumowskiMira calculate and draw points in style of Gumowski-Miradraw attractor.
 * @param  baseHue 0.0 - 360.0 : color of draw points.
 */
private class GumowskiMira {

  // Gumowski-Mira parameters
  float pA;
  float pB;
  float pM;

  // original parameter, some catalyst
  float pC;

  // just a color
  float baseHue;

  GumowskiMira(float baseHue) {

    this.baseHue = baseHue;

    float pAmin = 0.00001;
    float pAmax = 0.01;
    float pBmin = 0.01;
    float pBmax = 0.7;
    float pMmin = 0.0001;
    float pMmax = 0.01;
    float pCmin = 0.00005;
    float pCmax = 0.0003;

    pA = -(pAmin + (pAmax - pAmin) * floor(random(3.0)) / 3.0);
    pB = -(pBmin + (pBmax - pBmin) * floor(random(5.0)) / 5.0);
    pM = -(pMmin + (pMmax - pMmin) * floor(random(5.0)) / 5.0);
    pC = +(pCmin + (pCmax - pCmin) * floor(random(3.0)) / 3.0);

  }

  /**
   * draw a shape base on Gumowski-Mira attractor.
   * @param  frameRatio 0.0 - 1.0 : to use animate Gumowski-Mira attractor along frame.
   */
  private void draw(float frameRatio) {

    noStroke();
    float catalystDiv    = map(frameRatio, 0.0, 1.0, TWO_PI * 0.56, TWO_PI * 0.71); // key of this code. make interesting shape
    float shapeRate      = 1.0 - abs(map(frameRatio, 0.0, 1.0, -1.0, 1.0));         // 0.0 -> 1.0 -> 0.0
    int   drawCntMax     = 80;
    int   catalystCntMax = 400;

    for (int catalystCnt = 0; catalystCnt < catalystCntMax; ++catalystCnt) {

      catalystDiv += pC;

      float prevX = 0.0;
      float prevY = 0.0;
      float prevC = 0.0;

      for (int drawCnt = 0; drawCnt < drawCntMax; ++drawCnt) {

        // style of Gumowski-Mira attractor
        float x    = (prevY + pA * (1 - pB * prevY * prevY) * prevY + calcFunc(prevX)) * map(sin(prevC), -1.0, 1.0, 0.96, 1.04);
        float y    = (-prevX + calcFunc(x)) * map(sin(prevC), -1.0, 1.0, 1.04, 0.96);

        float c    = prevC + catalystDiv;
        float size = map(catalystCnt, 0, catalystCntMax, 0.0, 4.0 + shapeRate * 8.0);

        fill(
             (baseHue + map(drawCnt, 0, drawCntMax, 0.0, 60.0)) % 360,
             map(drawCnt, 0, drawCntMax, 90.0, 0.0),
             map(catalystCnt, 0, catalystCntMax, 20.0, 0.0) * (1.5 - shapeRate),
             100
             );
        ellipse(
                x * width * 0.14,
                y * height * 0.14,
                size,
                size
                );

        prevX = x;
        prevY = y;
        prevC = c;

      }
    }
  }

  /**
   * main equation of Gumowski-Mira attractor.
   * @param  x : just an input value of equation.
   */
  private float calcFunc(float x) {
    return pM * x + 2 + (1 - pM) * x * x / (1 + x * x);
  }

}


/**
 * backdrop draw backdrop.
 * @param  baseHue 0.0 - 360.0 : backdrop color.
 */
private void backdrop(float baseHue) {

  noFill();
  strokeWeight(10.0);
  int radiusMin = 30;
  int radiusMax = ceil(width * 1.5);
  for (int radius = radiusMin; radius < radiusMax; radius += 5) {
    stroke(
           (baseHue + 30.0) % 360.0,
           30,
           map(radius, radiusMin, radiusMax, 0.0, 20.0),
           100
           );
    ellipse(280.0, 0.0, radius, radius);
  }

}

/*
Copyright (C) 2018- deconbatch

This program is free software: you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation; either version 3 of the License, or
(at your option) any later version.

This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
GNU General Public License for more details.

You should have received a copy of the GNU General Public License
along with this program.  If not, see
*/
